Curve plugged 2920H

Standard Configuration

  • Active Length 29 mm
  • Bending High
  • Width 20 mm
  • plugged

Description

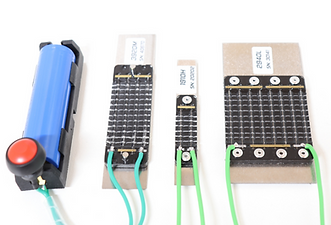

A discreet actuator module offers completely new possibilities for adjustment functions without the conventional mechanics. The enabled new solutions are lightweight, compact and easy to integrate. The actuator modules are customizable for all your needs and requirements in size, substrate, deflection, load and electrical resistance.

Different mounting options are possible such as adhesive films, liquid adhesives, bolts, rivets, screws or plug-on. Also there are different solutions for the electrical interface such as crimping, soldering, plugging in, welding etc.

For the selected configuration the data sheet is available here:

This actuator configuration is only available on request. There are currently six different samples available, please refer to the category “sample actuators” and “sample modules”.

Please do not hesitate to contact us.
